3-Piece Ball Valve

Series 5000/6000

Size Range
¼ - 4" (8mm - 100mm)
Temperature Range
-50°F to 450°F (-46°C to 232°C)
Maximum Allowable Operating Pressure
½ - 2" 1000 psi CWP (8 - 50mm 69 Bar),
2½ - 4" 800 psi CWP (65 - 100mm 55 Bar)

Specifications

3-Piece Ball Valve - Series 5000/6000

Size Range
¼ - 4" (8mm - 100mm)
Body Materials
Series 5000: Stainless Steel, Series 6000: Carbon Steel
Temperature Range
-50°F to 450°F (-46°C to 232°C)
Stem Materials
316
Maximum Allowable Operating Pressure
½ - 2" 1000 psi CWP (8 - 50mm 69 Bar),
2½ - 4" 800 psi CWP (65 - 100mm 55 Bar)
Seat Materials
RPTFE
Shutoff Rating
MSS-SP 72
Ball Materials
316
Body Style
Three Piece
Design Standard
ASME B16.34
End Connections
Threaded (ASME B1.20.1 NPT), Socket Weld (ASME B16.11)
Testing Standard
API 598
Ports
Full Port
Face to Face
Manufacturers standard (see catalog)
applications
Process, OEM Equipment

Features & Benefits

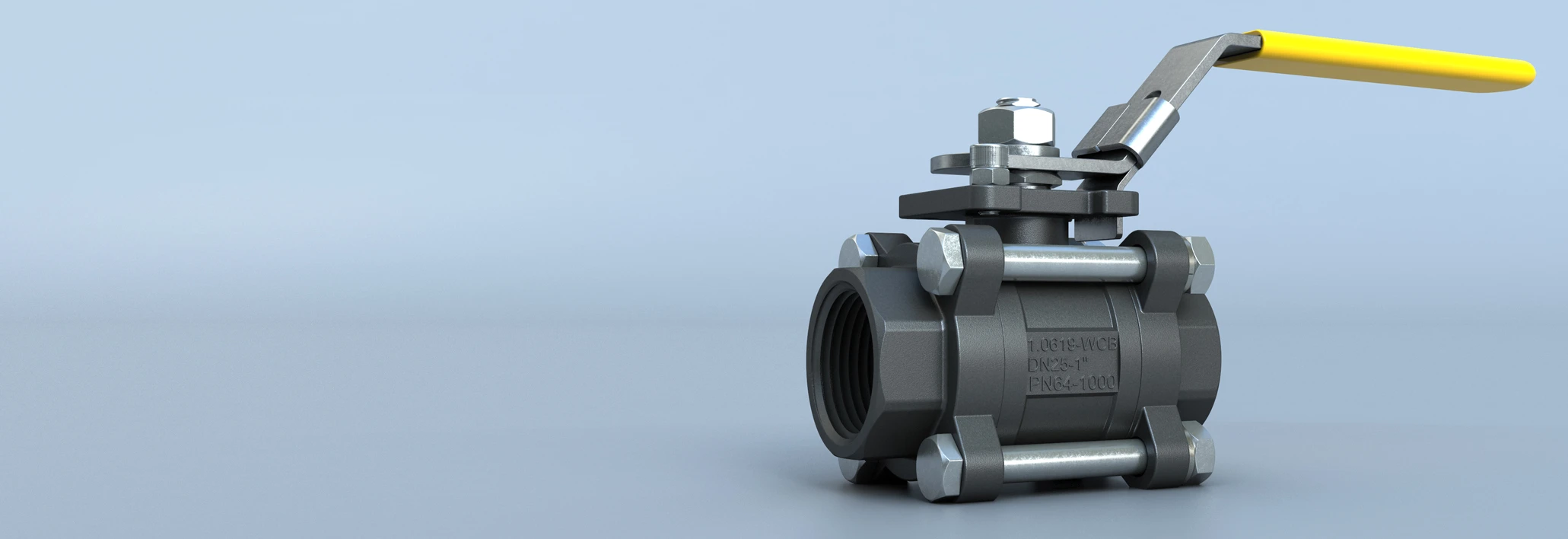

The Series 5000/6000 3-piece ball valves offer the convenience of a three piece body design at an economical price. The three piece design with a swing out center section allows for ease of in-line and out-of-line maintenance. Standard valve bodies are investment cast CF8M Stainless Steel or WCB Carbon Steel. All body castings are marked with a foundry heat number for full traceability.

These valves offer quarter turn operation and low operating torque. Series 5000/6000 valves feature adjustable stem packing, stainless steel safety trigger locking handles and travel stops which limit handle movement to set 90° intervals. Flow-Tek's heavy duty, high quality stems are internal entry and blowout proof for maximum safety.

Each Series 5000/6000 valve features an integrally cast mounting pad complying with ISO 5211 that provides positive alignment when mounting actuators, gear operators or control accessories.

The Series 5000/6000 ball valve is an integral part of the Bray product line for applications requiring quarter turn operation and low operating torque.
