Proximity Sensor

Series 54-GS

Switching Function
PNP: 2 x normally open (NO)
DC-2-wire: 2 x normally open (NO)
Output Type
PNP, DC 2-wire
Rated Operating Distance
0 ... 2.43 mm

Specifications

Proximity Sensor - Series 54-GS

Switching Function
PNP: 2 x normally open (NO)
DC-2-wire: 2 x normally open (NO)
Output Type
PNP, DC 2-wire
Communication Protocols
None
Rated Operating Distance
0 ... 2.43 mm
Enclosure Ratings
IP66/ IP67
Connections
Pin connector, Cable gland
Operating Voltage
PNP 10 ... 30 V DC
DC 2-wire 5 ... 30 V DC
Mounting
NAMUR/ VDI VDE 3845
Switching Frequency
PNP: 0 … 1000 Hz
DC 2-wire: 0 … 500 Hz
Temperature Range
-13° to 158° F (-25° to 70° C)
Certifications
cULus listed, general purpose

Features & Benefits

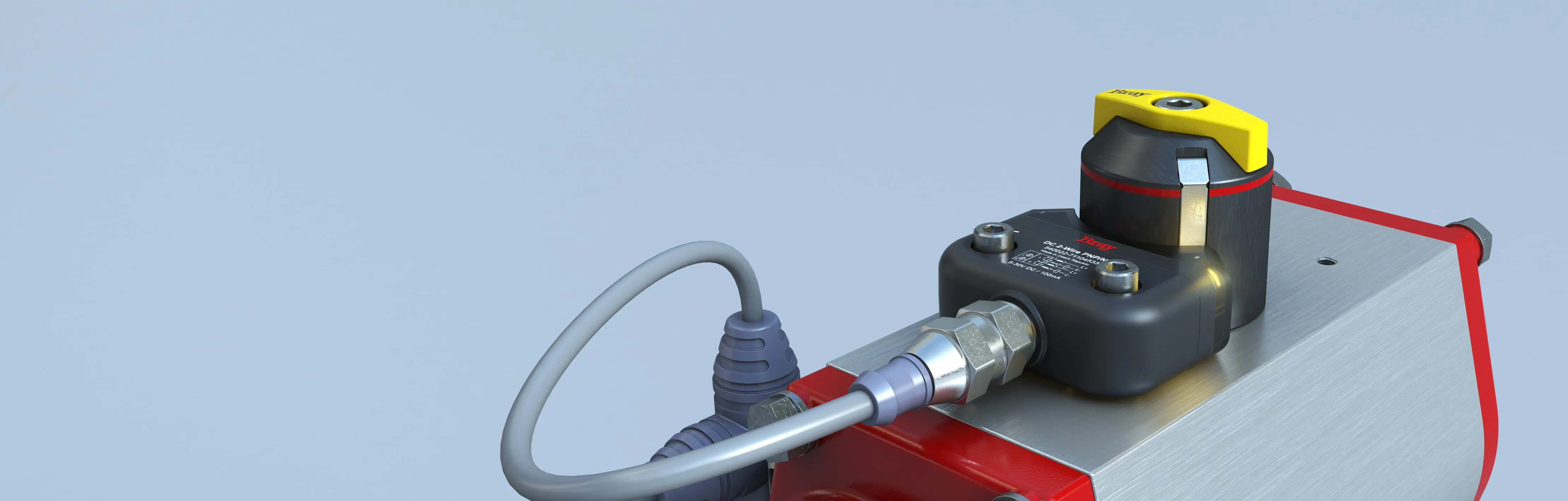

Inductive Proximity Sensor

The Series 54 proximity sensor provides position indication for quarter turn valves. The superior design offers reliable and durable valve monitoring and control solutions for efficient plant operation.

The compact Series 54 directly mounts to VDI/VDE 3845 compliant actuators resulting in a smaller actuator profile while saving on cost. Various electrical output options allow integration of the Series 54 into all standard process control environments.

Features:

  • Two independent sensors for open and close valve position indication
  • Optimal design for high pressure washdowns and caustic washdown service
  • Hermetically sealed to protect against the ingress of liquids or solids
  • Suitable for dirty process environments and rapid cycling applications
  • Rugged design resistant to shock, vibration, UV and corrosion
  • Maintenance free design
  • Non-contact sensor eliminates the effect of mechanical wear
  • Eliminates potential switch welding, arcing and sparking
  • Quick and easy installation
  • LED indication for sensor power, switch and solenoid status
