Bidirectional Knife Gate Valve

Series 746

Size Range
NPS 2 to 24 / DN 50 to 600
Maximum Allowable Operating Pressure
240psi (16bar)
Body Style
Single Piece, Wafer

Specifications

Bidirectional Knife Gate Valve - Series 746

Size Range
NPS 2 to 24 / DN 50 to 600
Body Materials
Ductile Iron, Carbon Steel (WCB) CF8 Stainless Steel, CF8M Stainless Steel, CF3M Stainless Steel
Maximum Allowable Operating Pressure
240psi (16bar)
Stem Materials
304 Stainless Steel
Body Style
Single Piece, Wafer
Gate Materials
316, 317 Stainless Steel, SAF 2507, SAF 2205, 17-4PH, Hastelloy® C, Monel®
Liner Maximum Temperature
176°F (80°C)
Design Standard
Manufacturer Standard
Packing Maximum Temperature
Impregnated PTFE: 450°F (232°C)
PTFE/Buna-N: 194°F (90°C)
Testing Standard
MSS SP151
Certifications
ATEX, TR CU
Face to Face
Manufacturer Standard
Actuator Options
Handwheel, Bevel Gear, Pneumatic, Hydraulic, Electric

Features & Benefits

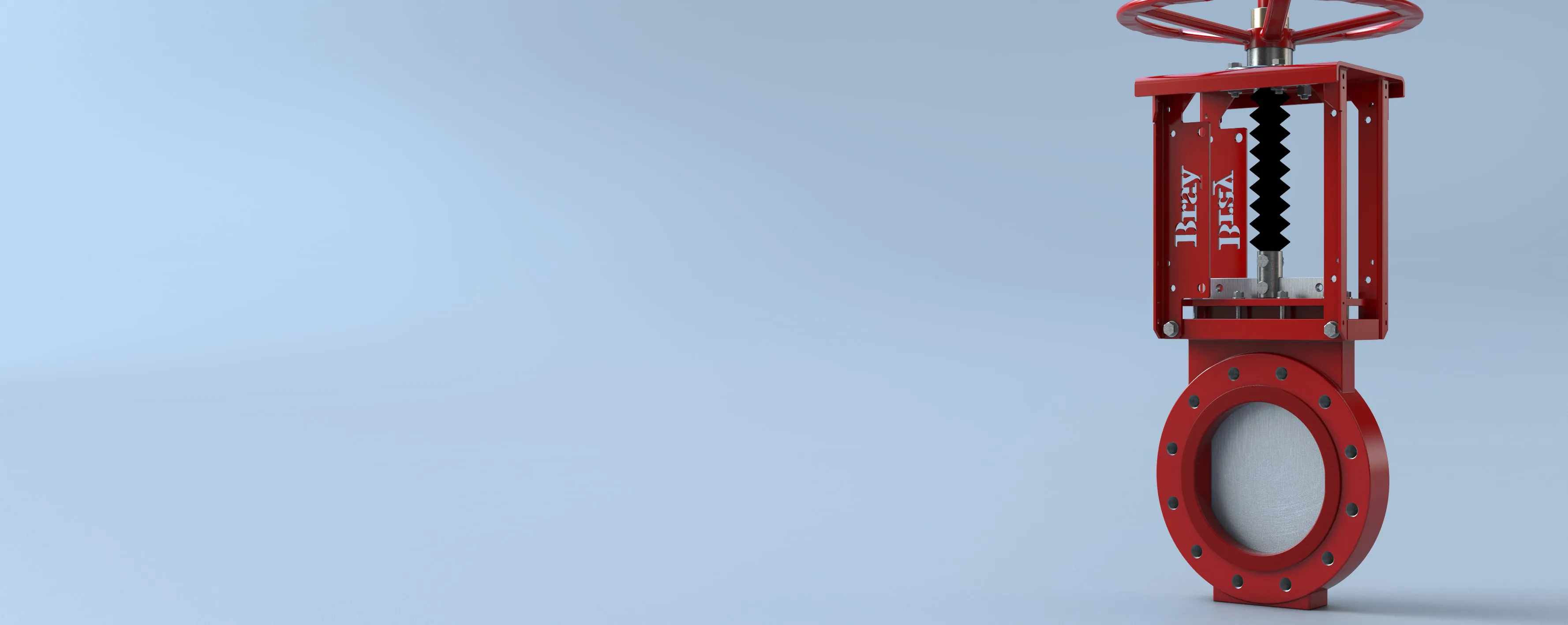

The Series 746 bidirectional knife gate valve features a one piece urethane liner molded throughout the body and chest providing Class VI shutoff in the most abrasive applications. The liner extends over the front face of the body, ensuring total protection from abrasive media and eliminating the need for additional gaskets. The one piece, durable ductile iron body is offered in a compact wafer style for ease of handling and installation.

Bidirectional Knife Gate Valve Series 746 Features

  • A. Stem Cover

    Protective stem cover is standard increasing cycle life in hazardous environments.

  • B. Packing Gland

    Live-loaded packing gland extends gate life preventing leakage and discharge from top of valve.

  • C. Body

    Standard one piece ductile iron body with molded urethane liner throughout.

  • D. Liner

    Urethane body liner is rated up to 80°C/176°F and completely protects valve body from abrasive line media. (UMP 241 90 Shore, PTMEG-TDI)

  • E. Unrestricted Flow Path

    Unrestricted flow path with minimal pressure drop achieved through full port valve design for extended valve life.

  • F. Gate

    Robust gate available in a wide range of corrosion resistant alloys to suit the application.

  • G. Seat

    Seat and port designed to be flush eliminating cavities where media can collect and prevent full gate closure.
