Bidirectional Polyurethane Lined Knife Gate Valve - Series 746HP
The Bray Series 746HP features a one-piece polyurethane bonded liner throughout the body and chest providing Zero Leakage shutoff in the most abrasive applications. The liner extends over the front face of the body, ensuring total protection from abrasive media and eliminating the need for additional gaskets.
The one-piece, durable ductile iron body is offered in a compact wafer style for ease of handling and installation.

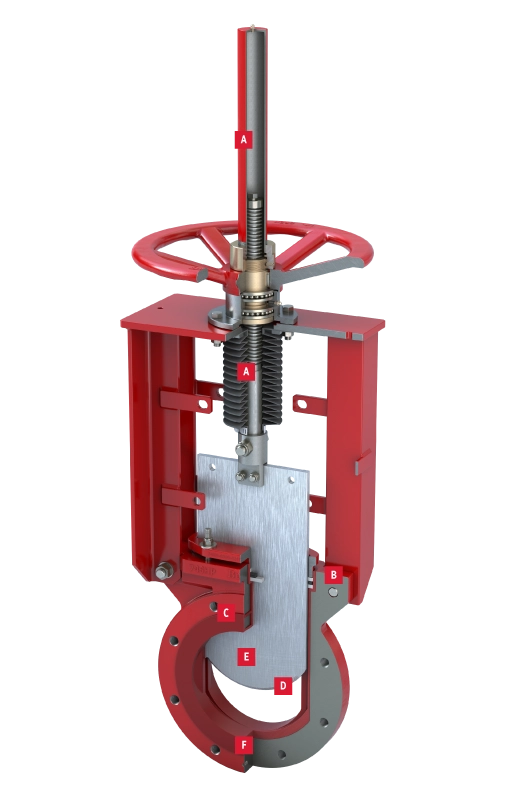

Upper and lower protective stem cover is standard in all models, increasing cycle life in hazardous environments.
Multi-layer square packing with energized quad seal provides exceptional gland sealing.
Standard one-piece ductile iron body with polyurethane bonded liner throughout. Polyurethane body liner is rated up to 194°F/90°C and completely protects valve body from abrasive line media.
Unrestricted flow path with minimal pressure drop achieved through full port valve design for extended valve life.
Available in a wide range of corrosion-resistant alloys, the robust tapered edge gate efficiently cuts through thick slurries or solids in the flow.
Seat and port designed to be flush eliminating cavities where media can collect and prevent full gate closure.
